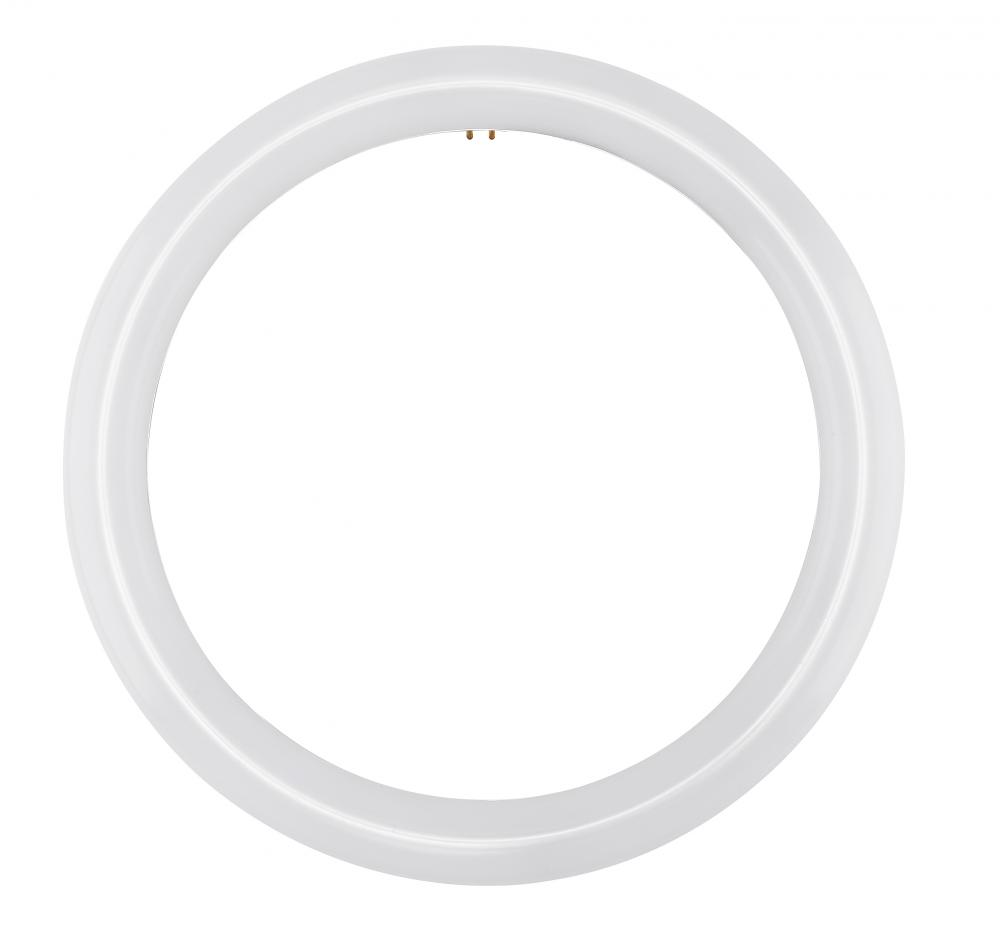

LED Circline; 16 Watt; T9; 3000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass (LNM1L)
$20.00
Call For Price
Enlarge Image
Add to Cart
Description:
LED Circline; 16 Watt; T9; 3000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
Availability:
  • Manufacturer has 2926 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.13"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T9 Circline
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K
right arrow Bulb Shape: T9
right arrow Diameter: 1.13
right arrow EA Length: 1.5
right arrow Harmonized Codes: 8539.52.0010
right arrow Length: 11.75
right arrow Lumens: 1600L
right arrow Shap Carton Width: 12
right arrow Ship Carton Height: 12
right arrow Ship Weight: 0.38
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.47
right arrow Additional Info: Replaces 32W fluorescent Circlines
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 135
right arrow Bulb ANSI Base: G10q
right arrow Bulb Base: G10q (4-Pin)
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.125
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 100.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: MOL: 12.00 inches, MOD: 12.00 inches
right arrow Feature 2: Superior 80 CRI light quality, 1600 lumens, 3000K warm white light, with a 135 degree beam spread
right arrow Feature 3: Rated for enclosed fixtures
right arrow Feature 4: Damp location rated
right arrow Feature 5: 16 watt LED replaces 32 watt fluorescent
right arrow Feature 6: Frost finished circline plastic bulb with white housing
right arrow Feature 7: LED energy efficient fixture
right arrow Feature 8: 5 year limited warranty
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 100W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Frost
right arrow Location Rating: Damp
right arrow Long Description: Satco's S16503 T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 de
right arrow Nominal Length: 12
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -25C (-13F) to +45C (+113F)
right arrow Pack Type: Box
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 15
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Satco's T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees a
right arrow SDS class: LED_Lamp
right arrow Short Description: FC12T9/LED/CIR/830/BP
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.5KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Wattage Selectable: No
right arrow Watts: 16W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1101-1600
right arrow Standard Kelvin: 2501-3000
