8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; (X9RCZ)
$25.00
Call For Price
Enlarge Image
Add to Cart
Description:

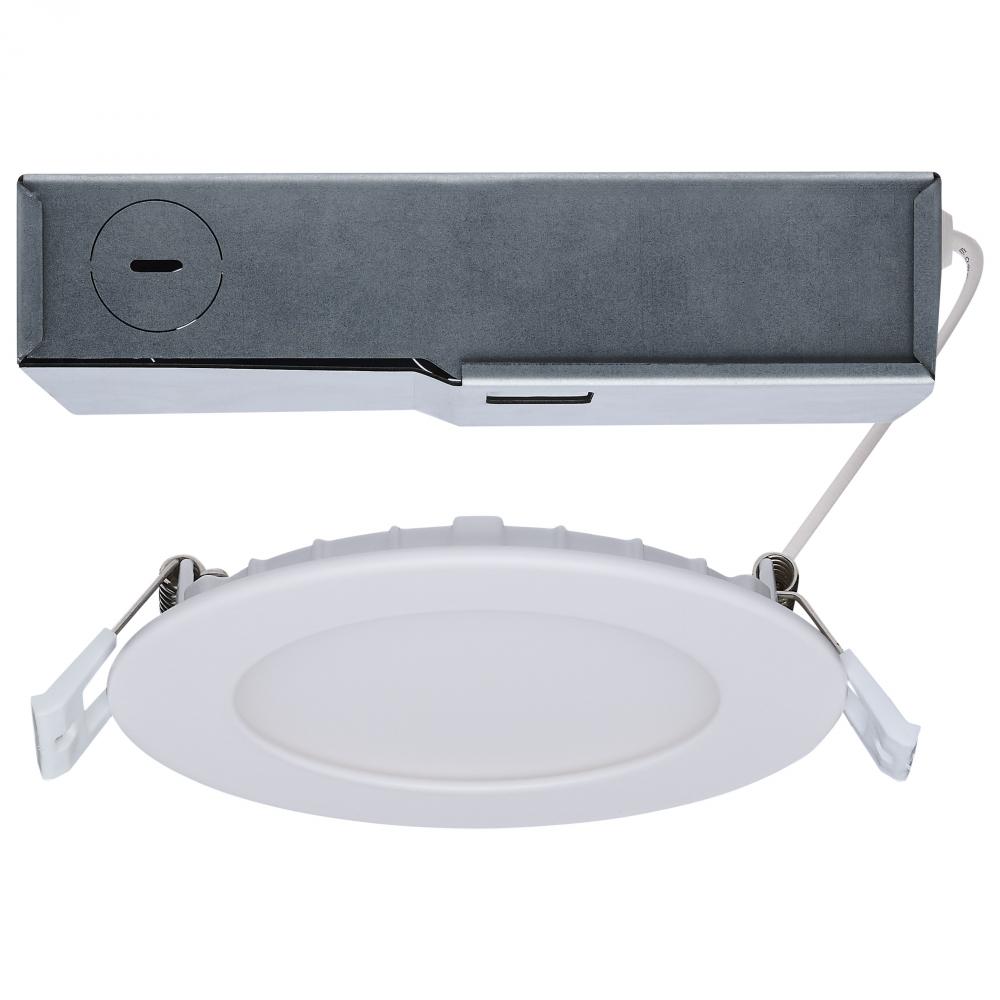

8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming
Availability:
  • Manufacturer has 7195 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 1.34"
right arrow Width: 4.72"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Style: Utility
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: Warm White to Natural Light
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Diameter: 4.72
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 9405.11.6010
right arrow Lumens: 720L/1000L
right arrow Ship Carton Height: 6.89
right arrow Ship Carton Length: 5.08
right arrow Ship Carton Width: 2.48
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.067-0.029/0.100-0.043A
right arrow ANSI Base: Integrated
right arrow Beam Spread: 108
right arrow CA Prop-65: Lead
right arrow Carton Cubic Feet: 0.0502
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Ceiling Aperture: 4.25 in. Cutout
right arrow Closet Rated: Yes
right arrow Connection: Direct Wired
right arrow Country Of Origin: Vietnam
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimmable Function: Triac at 120V / 0-10V at 120-277V
right arrow Dimming Type: Dual Dimming
right arrow Efficacy: 90.00/83.33 LPW
right arrow ES Category: Downlight Recessed
right arrow ES Unique ID: ESID-3994344
right arrow FCC Compliant: Yes
right arrow Feature 1: Wattage Selectable for High & Very High Outputs
right arrow Feature 10: 5 Year Warranty
right arrow Feature 2: 5 CCT Selectable from Warm to Natural Light
right arrow Feature 3: Flat Face Design for Reduced Glare
right arrow Feature 4: NEC Compliant Junction Box
right arrow Feature 5: Dual Dimming
right arrow Feature 6: FT6 Cable for Commercial Plenums
right arrow Feature 7: 90 CRI
right arrow Feature 8: Wet Location Rated
right arrow Feature 9: 50,000 Hour Functional Life
right arrow Finish Family: White
right arrow Fixture shape: Round
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 75W
right arrow Indoor Outdoor: Indoor and Outdoor
right arrow Installation Notes: Plenum Rated FT6 Cable
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Matte Frosted
right arrow Lens Material: Acrylic
right arrow Long Description: The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11690 4-inch round model features field-selectable five CCT and two wattage options (8W/12W), delivering both high output (HO) and very high output (VHO) i
right arrow Material: Aluminum
right arrow Mounting Diameter: 4.25
right arrow Mounting Height: 3.43
right arrow NEC Compliance: Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
right arrow Operating Frequency: 60Hz
right arrow Operating Temprature: -20C (-4F) to +40C (+104F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 50
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 12WLED/DW/4/FS/RND/FL/DD
right arrow Sloped Ceiling Compatible: Yes
right arrow Specification Notes: Default CCT Setting: 2700K; Default Wattage Setting: 12W
right arrow Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Total Harmonic Distortion: <20%
right arrow Trim Material: Aluminum
right arrow Wattage Selectable: Yes
right arrow Weight Lb.: 1.04
right arrow Standard Option: Energy Star energy star.jpg , LED energy star.jpg , Prop 65 prop65.png
