Finish Family:
White

Category:
LED

Sub-Category:
Type A

Volts:
120V

Bulb Dimmable:
Yes-Dimmable

Bulb Hours:
25000

Bulb Kelvin:
2700K

Bulb Shape:
A19

Diameter:
2.36

EA Length:
2.44

Harmonized Codes:
8539.52.0010

Length:
4.61

Lumens:
550L

Shap Carton Width:
2.44

Ship Carton Height:
4.92

Ship Weight:
0.17

Warranty:
3 Year Limited - 16 hr per day

Weight:
0.11

Additional Info:
Designed for use with Overdrive and Precision brand controls

BAA Compliant:
No

Beam Spread:
140

Bulb ANSI Base:
E26

Bulb Base:
Medium

Bulb Finish:
Frost

Burning Position:
Universal

Carton Cubic Feet:
0.017

Cartons Per Unit:
1

CCT Selectable:
No

CEC:
Non-Compliant - <82 CRI

CEC Terse:
Non-Compliant

CEC Web Text:
Non-Compliant

Color Temprature:
Warm White

Country Of Origin:
China

CRI:
80+

Dimmable Down To:
100 to 20 percent

Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable

DLC Approved:
No

Efficacy:
110.00 LPW

Enclosed Fixture Use:
Yes

Enclosure Rating:
Enclosed Rated Lamp

FCC Compliant:
Yes

Feature 1:
Dimmable from 100% down to 10%

Feature 2:
Medium base

Feature 3:
Operating temperature: -20C (-4F) to a maximum of +45C (+113F)

Feature 4:
IP54 rating

Feature 5:
RoHS and FCC compliant

Feature 6:
Three year limited warranty

Has Emergency Battery:
No

Housing Color:
White

Incandescent Equivalent:
40W

Indoor Outdoor:
Indoor;Outdoor

IOT Enabled:
No

IP Rating:
IP54

JA8 Compliant:
No

Lamp Filament:
LED

Lens Finish:
Frost

Lens Material:
Plastic (PS)

Location Rating:
Wet

Long Description:

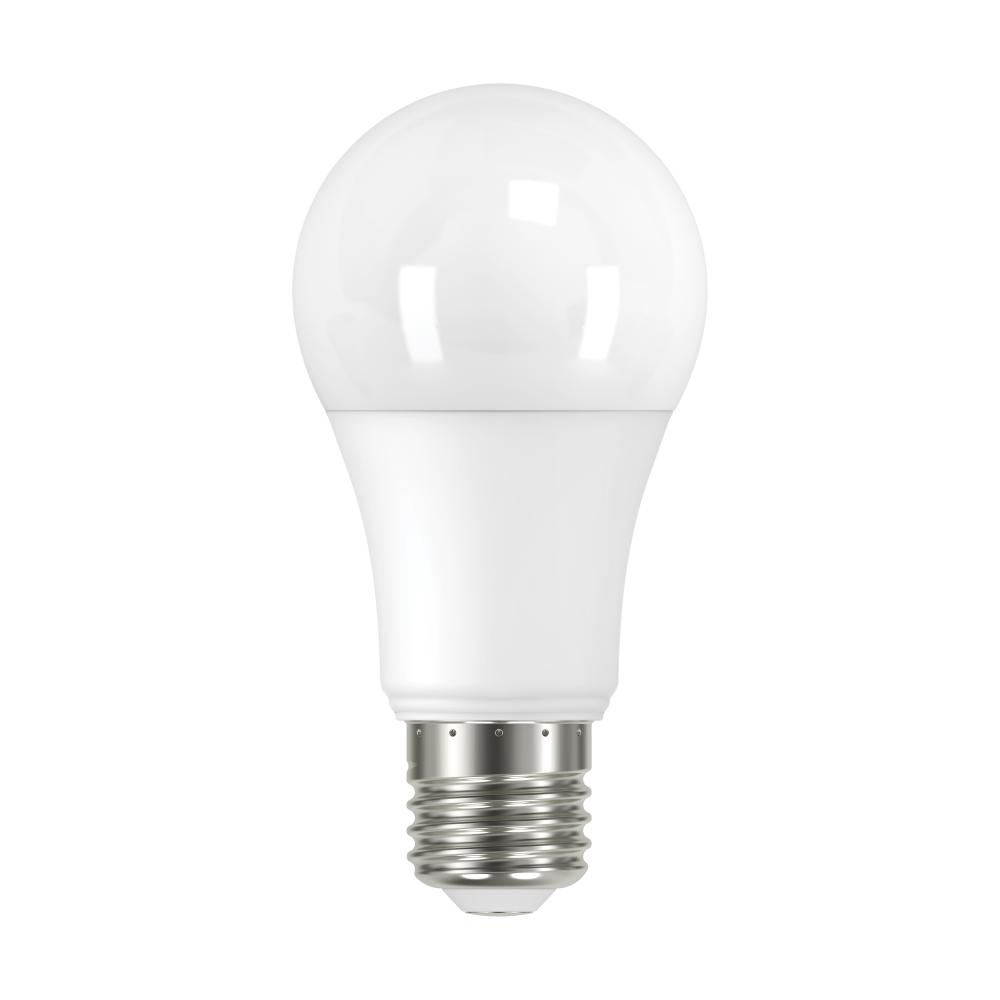

Satco's S11430 is a commercial grade, 5-watt 2500K LED lamp for use in agricultural environments or other areas where a rough service lamp is needed. The lamp is suitable for use with enclosed fixtures and is wet location rated. In addition, the lamp h

Material:
Aluminum / Plastic

Operating Frequency:
60Hz

Operating Temp:
-20C (-4F) to +45C (+113F)

Order In Multiples Of:
1

Pack Type:
Box

Power Factor:
0.9

Quantity In Pack:
1

RoHS Compliant:
Yes

Romance Copy:
A commercial grade LED lamp for use in agricultural environments or other areas where a rough service lamp is needed. The lamp is suitable for use with enclosed fixtures and is wet location rated. In addition, the lamp has enhanced dimming capabilities.

SDS class:
LED_Lamp

Short Description:
5A19/LED/827/AGRI/120V/D

Style:
Specialty

Technology:
LED

Title 20 Compliant:
No

Title 24 Compliant:
No

Wattage Selectable:
No

Watts:
5W

Standard Category:
Light Bulbs

Standard Subcategory:
LED Bulbs

Standard Finish:
White

Standard Style:
Traditional

Standard Lumens:
450-800

Standard Kelvin:
2501-3000

Standard Wattage:
5w
