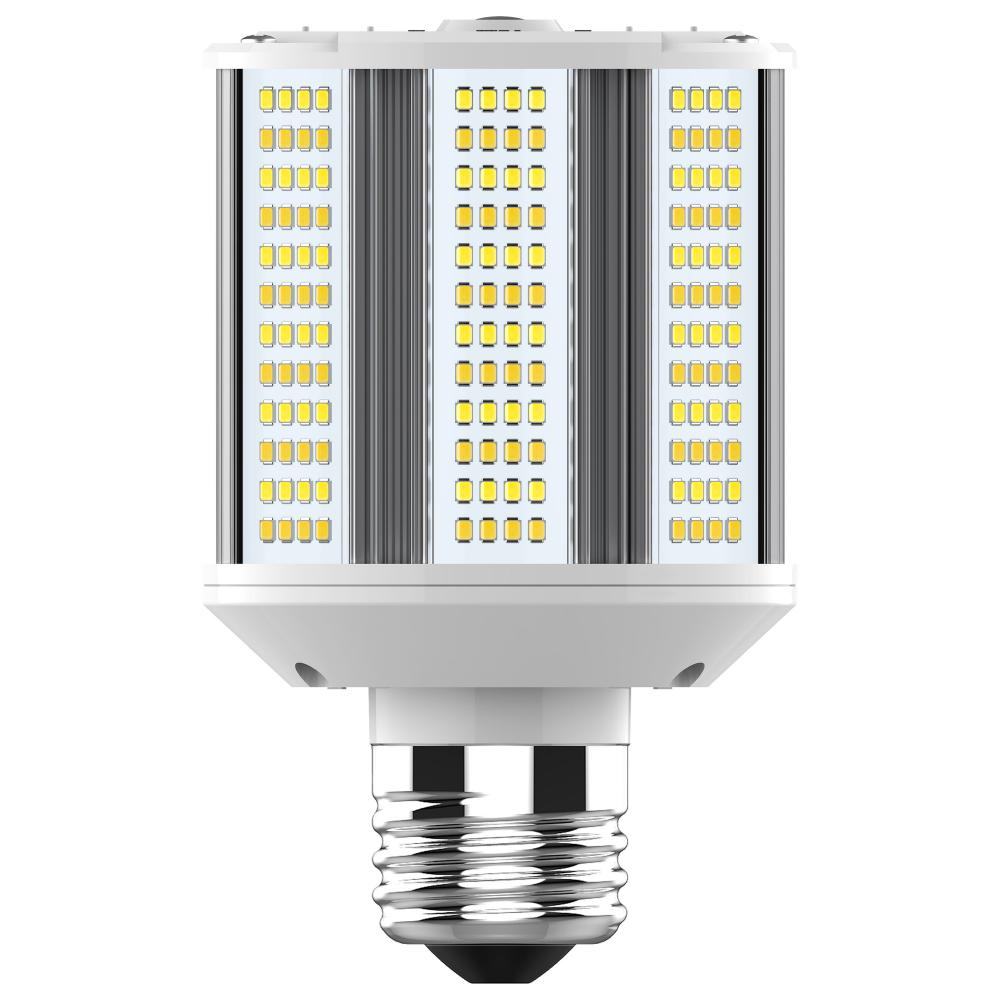

5/10/20 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; (LRLQD)
$71.00
Call For Price
Enlarge Image
Add to Cart
Description:
5/10/20 Wattage Selectable; LED Hi-Pro Wall Pack; CCT Selectable 3K/4K/5K; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Availability:
  • Manufacturer has 134 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 3.62"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/4000K/5000K
right arrow Bulb Shape: Corncob
right arrow Diameter: 3.62
right arrow EA Length: 7.48
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 5.43
right arrow Lumens: 850L/1500L/3000L
right arrow Shap Carton Width: 3.66
right arrow Ship Carton Height: 3.66
right arrow Ship Weight: 1.21
right arrow Warranty: 5 Year Limited - Hi-Pro
right arrow Weight: 1
right arrow B.U. G. Rating: B1-U3-G1
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 180
right arrow Bulb ANSI Base: E26
right arrow Bulb Base: Medium
right arrow Bulb Finish: White
right arrow Burning Position: Horizontal
right arrow Carton Cubic Feet: 0.058
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Non-Compliant - < 82 CRI
right arrow CEC Terse: Non-Compliant
right arrow CEC Web Text: Non-Compliant
right arrow Color Temprature: Warm to Cool White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Dimmable only via the wattage/lumen selectable dial included on lamp
right arrow DLC Approved: No
right arrow Efficacy: 170.00/150.00/150.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT Selectable-3000K, 4000K, 5000K
right arrow Feature 2: Wattage Selectable
right arrow Feature 3: Advanced Thermal Management
right arrow Feature 4: 4KV built-in surge protection
right arrow Feature 5: Rated for use in enclosed fixtures
right arrow Feature 6: Damp location rated
right arrow HID Equivalent: 100W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 25W/40W/60W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP64
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens Material: Plastic
right arrow Location Rating: Damp
right arrow Long Description: Satco's S28928 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Designed to focus clean and efficient LED light at 180 degrees from higher fixtures, this lamp is perfect for park
right arrow Material: Aluminum / Plastic
right arrow Minimum Compartment Size: Length: 8 in. Width: 8 in. Height: 11 in.
right arrow NSF Approved: No
right arrow Operating Frequency: 50-60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 8
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Satco's wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Designed to focus clean and efficient LED light at 180 degrees from higher fixtures, this lamp is perfect for parks, park
right arrow SDS class: LED_Lamp
right arrow Short Description: 20W/LED/WP/CCT/E26/100-277V
right arrow Style: Contemporary
right arrow Surge Protection: Built-in surge protection - 4KV
right arrow Technology: LED
right arrow Title 20 Compliant: No
right arrow Title 24 Compliant: No
right arrow Wattage Selectable: Yes
right arrow Watts: 5W/10W/20W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Style: Traditional
right arrow Standard Lumens: 801-1100
right arrow Standard Kelvin: 3001-3500
right arrow Standard Wattage: 5w
