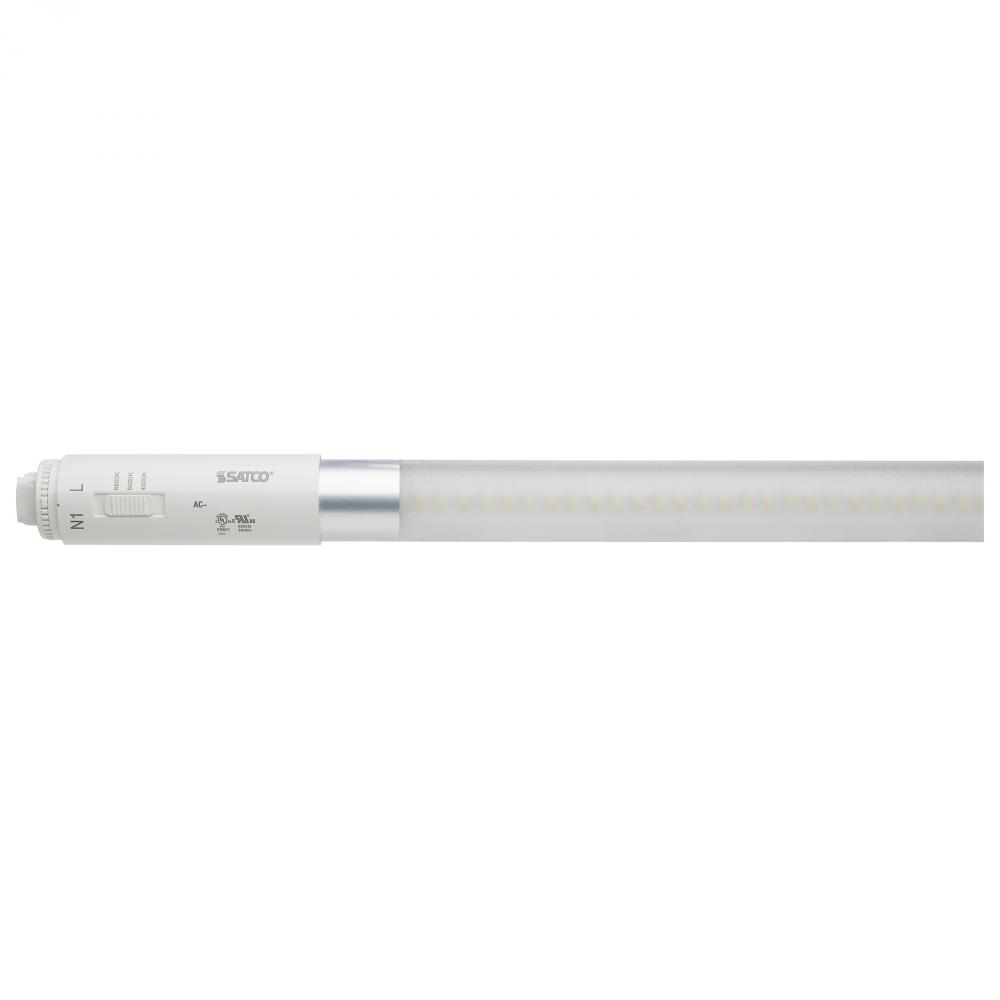

48 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass (X3VWC)
$80.00
Call For Price
Enlarge Image
Add to Cart
Description:
48 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
Availability:
  • Manufacturer has 209 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.13"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 4000K/5000K/6500K
right arrow Bulb Shape: T8
right arrow Diameter: 1.13
right arrow EA Length: 120
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 117.81
right arrow Lumens: 6700L/6900L/6600L
right arrow Shap Carton Width: 1.15
right arrow Ship Carton Height: 1.15
right arrow Ship Weight: 2.56
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 1.96
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 360
right arrow Bulb ANSI Base: R17d
right arrow Bulb Base: Recessed Double Contact HO/VHO
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.09180000000000001
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Cool White to Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 139.58/143.75/137.50 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: 4000K/5000K/6500K CCT Selectable
right arrow Feature 2: Double sided LED for 360 degrees of illumination
right arrow Feature 3: UL Type B - Ballast bypass installation
right arrow Feature 4: Rated for 50,000 hours
right arrow Feature 5: 120-277 Volts
right arrow Feature 6: Damp location rated
right arrow Feature 7: FCC and RoHS Compliant
right arrow Flourescent Equivalent: 135W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 150W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: Not for use in vapor tight fixtures. EM Driver, S8002 will operate only one side of the lamp in EM mode installed as the backup.
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Plastic
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S16443, 48-watt T8 lamp is the perfect lighting solution for balancing energy efficiency, advanced technology, and style. This double sided LED lamp delivers 360 degrees of illumination in 4000K, 5000K, or 6500K CCT. Color temperature and
right arrow Material: Polycarbonate (PC)
right arrow Nominal Length: 120
right arrow NSF Approved: ETL Sanitation listed (conforms to NSF)
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 10
right arrow Pack Type: Egg Crate
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 16
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED T8 Sign Lamps are the ideal lamp to replace traditional T8 lamps. With fourteen sizes from 18 inches to 120 inches, these lamps can fit virtually any size sign cabinet. Easily install the lamps with direct single or double-ended wiring
right arrow SDS class: LED_Lamp
right arrow Short Description: 48T8/LED/HO-SIGN/120-3CCT/BP/S
right arrow Style: Utility
right arrow Surge Protection: Built-in surge protection - 1KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 25%
right arrow Tube Guard Use: No
right arrow Wattage Selectable: No
right arrow Watts: 48W
right arrow Standard Category: Lamps
right arrow Standard Subcategory: LED Lamps
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 4001-4500
