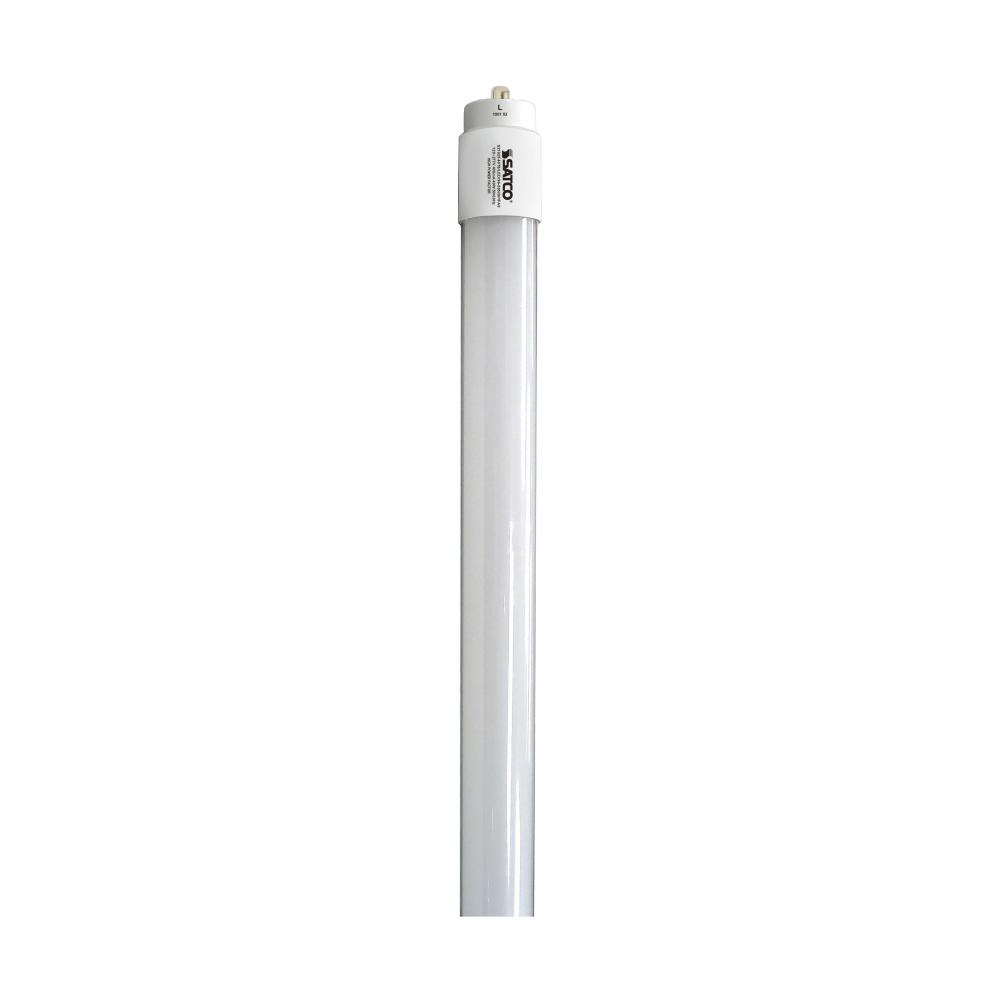

40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; (LNQX3)
$30.00
Call For Price
Enlarge Image
Add to Cart
Description:
40 Watt; 8 Foot; T8 LED; Single pin base; 6500K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1
Availability:
  • Manufacturer has 847 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 6500K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 94
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 94
right arrow Lumens: 5500L
right arrow Shap Carton Width: 1
right arrow Ship Carton Height: 1
right arrow Ship Weight: 0.88
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.88
right arrow Additional Info: Suitable for Emergency Lighting only with Satco EM Driver #S8002
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: Fa8
right arrow Bulb Base: Single Pin
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0544
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PLXALFHWUTHG
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 137.50 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: MOL: 94.00 inches, MOD: 1.00 inch
right arrow Feature 2: Superior 82 CRI light quality, 5500 lumens, 6500K CCT with a 210 beam spread
right arrow Feature 3: Rated for enclosed fixtures
right arrow Feature 4: Damp rated, for indoor use only
right arrow Feature 5: 40 watt LED replaces 59 watt fluorescent
right arrow Feature 6: White finished linear glass lamp
right arrow Feature 7: DLC Certified and qualifies for rebates where available
right arrow Feature 8: 5 year limited warranty
right arrow Flourescent Equivalent: 59W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 125W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: White
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S21925 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof prot
right arrow Material: Glass
right arrow Minimum Compartment Size: Length: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
right arrow Nominal Length: 96
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 10
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 12
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's 40 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection.
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 40T8/LED/96-865/BP/FA8
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 40W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 6001-6500
right arrow Standard Wattage: 40w
