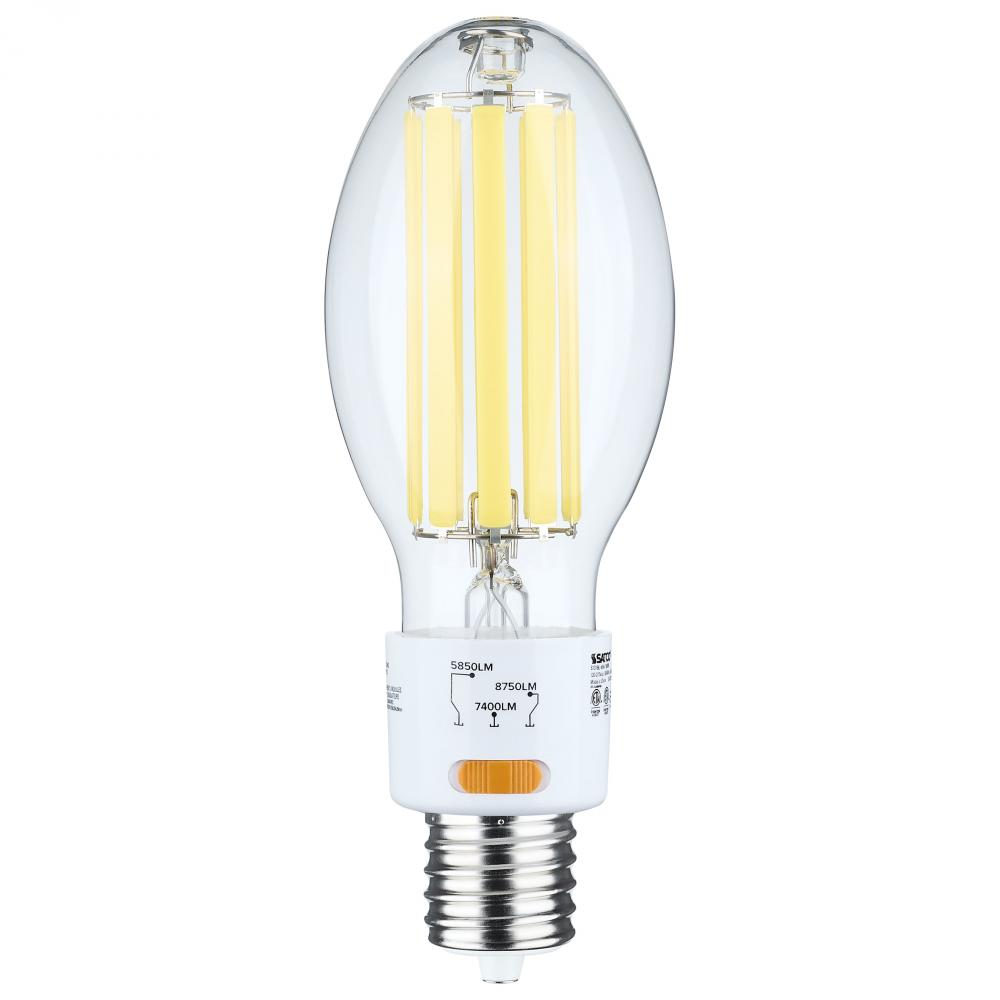

30/38/45 Wattage Selectable LED HID Replacement; ED28; 5000K; Mogul Extended Base; Clear; 120-277 (X6WHY)
$83.00
Call For Price
Enlarge Image
Add to Cart
Description:
30/38/45 Wattage Selectable LED HID Replacement; ED28; 5000K; Mogul Extended Base; Clear; 120-277 Range Voltage
Availability:
  • Manufacturer has 1605 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 3.58"
Additional Details:
right arrow Finish Family: Clear
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: ED28
right arrow Diameter: 3.58
right arrow EA Length: 3.54
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 9.92
right arrow Lumens: 5850L/7400L/8750L
right arrow Shap Carton Width: 3.54
right arrow Ship Carton Height: 10.63
right arrow Ship Weight: 0.8
right arrow Warranty: 5 Year Limited - Hi-Pro
right arrow Weight: 0.8
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
right arrow Beam Spread: 360
right arrow Bulb ANSI Base: EX39
right arrow Bulb Base: Mogul Extended
right arrow Bulb Finish: Clear
right arrow Burning Position: Universal
right arrow Candle Power: 500
right arrow Carton Cubic Feet: 0.0771
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Only dimmable through wattage selection switch on lamp
right arrow Dimming Type: Step Dimming
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-R38L9D
right arrow DLC Primary Use: Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
right arrow Efficacy: 195.00/194.74/194.44 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: Wattage Selectable
right arrow Feature 2: Type B - Ballast Bypass
right arrow Feature 3: Range Voltage 120V-277V
right arrow Feature 4: 360-Degree Illumination
right arrow Feature 5: Wet location rated
right arrow Feature 6: Universal Operating Position
right arrow Feature 7: Glass Lamp
right arrow Feature 8: EX39 Mogul base
right arrow Feature 9: Rated for Use in Enclosed Fixtures
right arrow HID Equivalent: 150W/250W/320W
right arrow Housing Color: White
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Location Rating: Wet
right arrow Long Description: SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting
right arrow Material: Glass
right arrow Minimum Compartment Size: Length: 14.02 in. Width: 8.03 in. Height: 8.03 in.
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Color Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 4
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps
right arrow SDS class: LED_Lamp
right arrow Short Description: 45W/LED/HID/ED28/850/EX39/CL
right arrow Style: Utility
right arrow Surge Protection: Built-in surge protection - 3KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <20%
right arrow Wattage Selectable: Yes
right arrow Watts: 30W/38W/45W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
