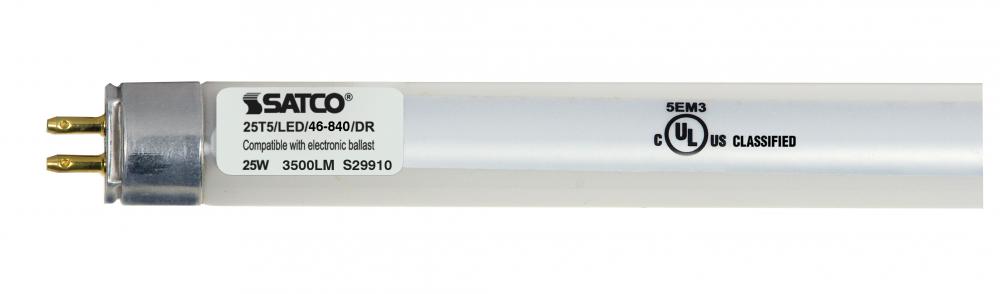

25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type A; (LRPMA)
$14.00
Call For Price
Enlarge Image
Add to Cart
Description:
25 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent
Availability:
  • Manufacturer has 1134 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 0.63"
Additional Details:
right arrow Category: LED
right arrow Sub-Category: LED T5
right arrow Volts: Ballast Dependent
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 4000K
right arrow Bulb Shape: T5
right arrow Diameter: 0.63
right arrow EA Length: 45.79
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 46
right arrow Lumens: 3500L
right arrow Shap Carton Width: 0.59
right arrow Ship Carton Height: 0.59
right arrow Ship Weight: 0.51
right arrow Warranty: 5 Year Limited - T5 LED Bulbs
right arrow Weight: 0.3
right arrow Additional Info: Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Direct
right arrow Ballasting Requirements: Ballast required
right arrow Beam Spread: 185
right arrow Bulb ANSI Base: G5
right arrow Bulb Base: Miniature Bi Pin
right arrow Bulb Finish: Gloss
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0092
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Cool White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PLYBR7TV2C9K
right arrow DLC Primary Use: Replacement Lamps (Plug and Play) (UL Type A)
right arrow Efficacy: 140.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Over 50 percent Energy Savings Vs. Standard T5 Systems
right arrow Feature 2: Compatible with T5 HO Ballasts
right arrow Feature 3: Integrated Thermal Fuse at Pins
right arrow Feature 4: All Glass Tube Construction
right arrow Feature 5: Damp Location Rated
right arrow Feature 6: Enclosed Fixture Rated
right arrow Feature 7: DLC Listed
right arrow Flourescent Equivalent: 54W
right arrow Housing Color: None
right arrow Incandescent Equivalent: 100W
right arrow Includes: Integrated thermal fuse at pins
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow Integrated Features: Integrated thermal fuse at pins
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type A
right arrow Lamp End Type: Double Ended
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Gloss
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S29910 4-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 25 watt, 4000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins. T
right arrow Material: Aluminum / Glass
right arrow Nominal Length: 48
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 10
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not o
right arrow SDS class: LED_Lamp
right arrow Short Description: 25T5/LED/46-840/DR
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 25W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Style: Traditional
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 3501-4000
right arrow Standard Wattage: 25w
