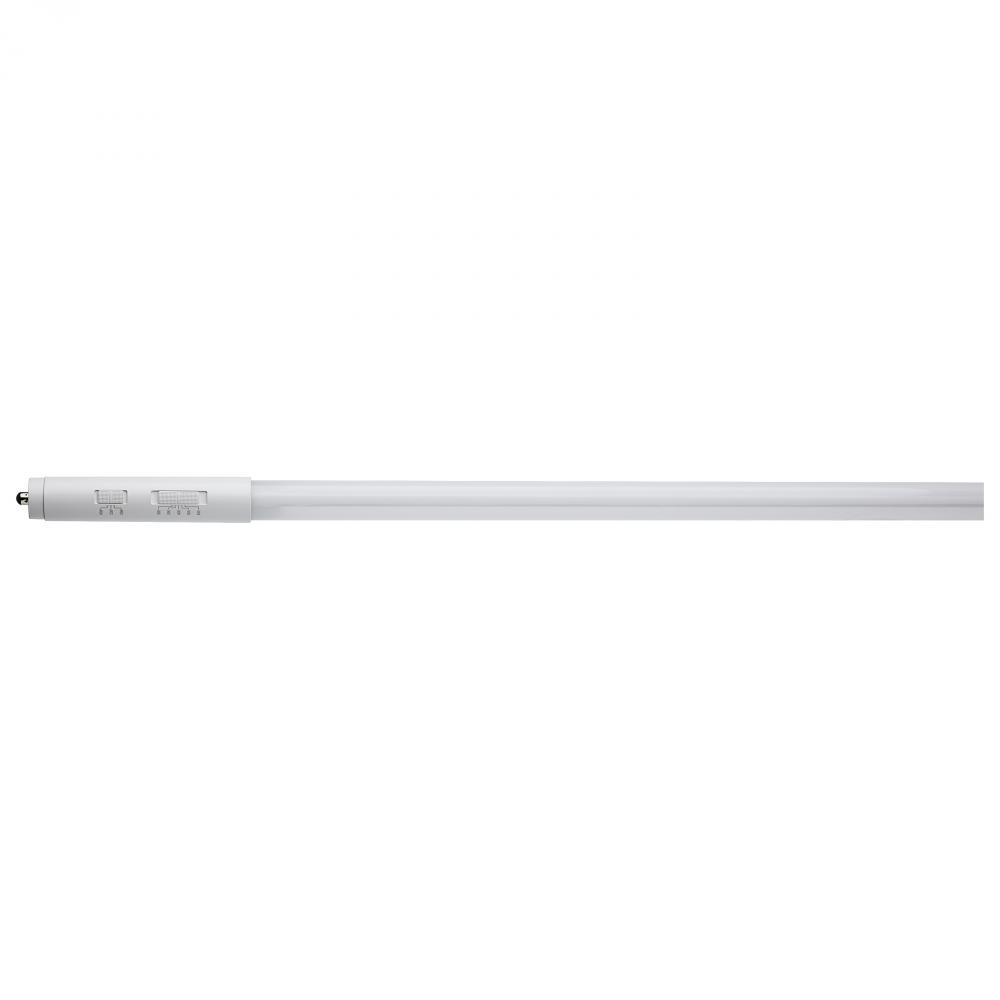

24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base (X6TLE)
$34.00
Call For Price
Enlarge Image
Add to Cart
Description:
24/32/40 Wattage Selectable; 8 Foot T8 LED; 30/35/40/50/65K CCT Selectable; 120-277 Volt; FA8 Base
Availability:
  • Manufacturer may be Out Of Stock.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 48.39
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 93.75
right arrow Lumens: 3500L/4400L/5500L
right arrow Shap Carton Width: 6.5
right arrow Ship Carton Height: 7.44
right arrow Ship Weight: 12.1
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.98
right arrow BAA Compliant: No
right arrow Ballasting Requirements: Type B Ballast Bypass
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: Fa8
right arrow Bulb Base: Single Pin
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 1.3542
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Soft White to Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-HPN8SY
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 145.83/137.50/137.50 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Both
right arrow FCC Compliant: Yes
right arrow Feature 1: Field Selectable: 3 Wattage and 5 CCT
right arrow Feature 10: Suitable for use in enclosed fixtures
right arrow Feature 2: DLC Listed when used in Fa8 applications
right arrow Feature 3: Optional R17d base caps included
right arrow Feature 4: Includes C-clip for extra support where tubes connect
right arrow Feature 5: PET Coated glass tube
right arrow Feature 6: Compatible with optional 10W emergency driver
right arrow Feature 7: Damp Location Rated
right arrow Feature 8: Range Voltage 120V-277V
right arrow Feature 9: 210 Degree Beam Angle
right arrow Flourescent Equivalent: 40W/55W/70W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 100W
right arrow Includes: (20) R17d Base Adapters and (10) Fastening Clips included per case
right arrow Installation Notes: Not for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/
right arrow IOT Enabled: No
right arrow JA8 Compliant: No
right arrow Lamp End Type: Double Ended
right arrow Lamp Filament: LED
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11756 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections tha
right arrow Material: Glass
right arrow Minimum Compartment Size: Length: 96.06 in. Width; 10.63 in. Height: 2.76 in.
right arrow Nominal Length: 96
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 10
right arrow Pack Type: Egg Crate
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 10
right arrow R9 Value: 5
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of this T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that secu
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 40T8/LED/96-CCT/BP/2PC
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: Yes
right arrow Watts: 24W/32W/40W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
