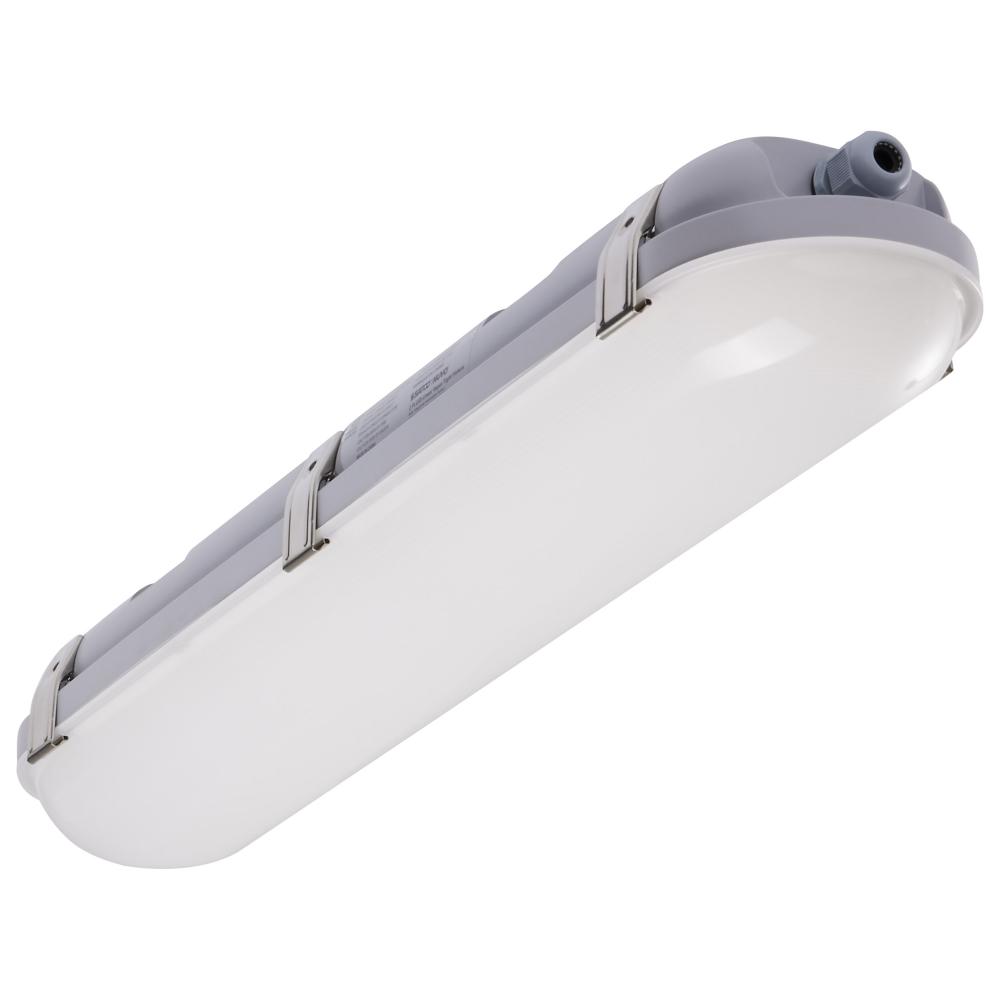

2 Foot; 20 Watt; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 (A6ADY)
$78.00
Call For Price
Enlarge Image
Add to Cart
Description:
2 Foot; 20 Watt; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated; 120V-347V
Availability:
  • Manufacturer may be Out Of Stock.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 3.46"
right arrow Width: 4.92"
Additional Details:
right arrow Finish: Gray
right arrow Category: Linear
right arrow Sub Category: Vapor Proof
right arrow Style: Utility
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 3.94
right arrow Each Length: 25.98
right arrow Each Width: 5.71
right arrow Length: 23.62
right arrow Lumens: 2164L-2505L
right arrow Tariff Code: 9405.42.6000
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.167-0.058A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Angle: 120
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Country Of Origin: Thailand
right arrow CRI: 80+
right arrow Dimmable Function: 0-10V; Integrated Sensor
right arrow DLC Classification: Standard
right arrow DLC Primary Use: Direct Linear Ambient Luminaires
right arrow Each Cube: 0.3382
right arrow Each Quantity: 1
right arrow Efficacy: 108.20/116.73/125.25 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: 120-347 Voltage - FOR USE IN CANADA
right arrow Feature 10: 5 Year Warranty
right arrow Feature 2: Maintenance free; no bulb to change
right arrow Feature 3: Heat and Tamper resistant
right arrow Feature 4: IP65 and IK08 Rated
right arrow Feature 5: CCT Selectable
right arrow Feature 6: 2KV built-in Surge Protection
right arrow Feature 7: 0-10V Dimmable
right arrow Feature 8: High lumens per Watt ratio
right arrow Feature 9: Water-resistant, dust-proof, corrosion proof, can be used in food-processing facilities
right arrow Finish Family: Gray
right arrow Fixture shape: Linear
right arrow Flicker Free: No
right arrow Has Driver: Yes
right arrow HID Equiv: 50W
right arrow Impact Rating (IK): IK08
right arrow Incandescent Equivalent: 125W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow IOT Enabled: No
right arrow IP Rating: IP65
right arrow JA8 Compliant: No
right arrow Lens Finish: Opaque
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: SATCO NUVO's 65-823R1 20 watt, 2 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT selectable and wet location rated, with 2KV surge protection. Versat
right arrow Material: Plastic
right arrow Mounting Procedure: Ceiling/Wall
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -40C (-40F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Integrated Microwave Sensor
right arrow Power Factor: >0.96
right arrow Quantity In Pack: 1
right arrow Rated For Vapor Tight Fixture: Yes
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 2' 20W LINEAR VAPOR PROOF
right arrow Temperature (CCT): 3000K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 10.30%
right arrow Wattage Selectable: No
right arrow Weight Lb.: 3.31
right arrow Standard Category: Utility
right arrow Standard Subcategory: Other Utility
right arrow Standard Finish: Gray
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 4001-4500
