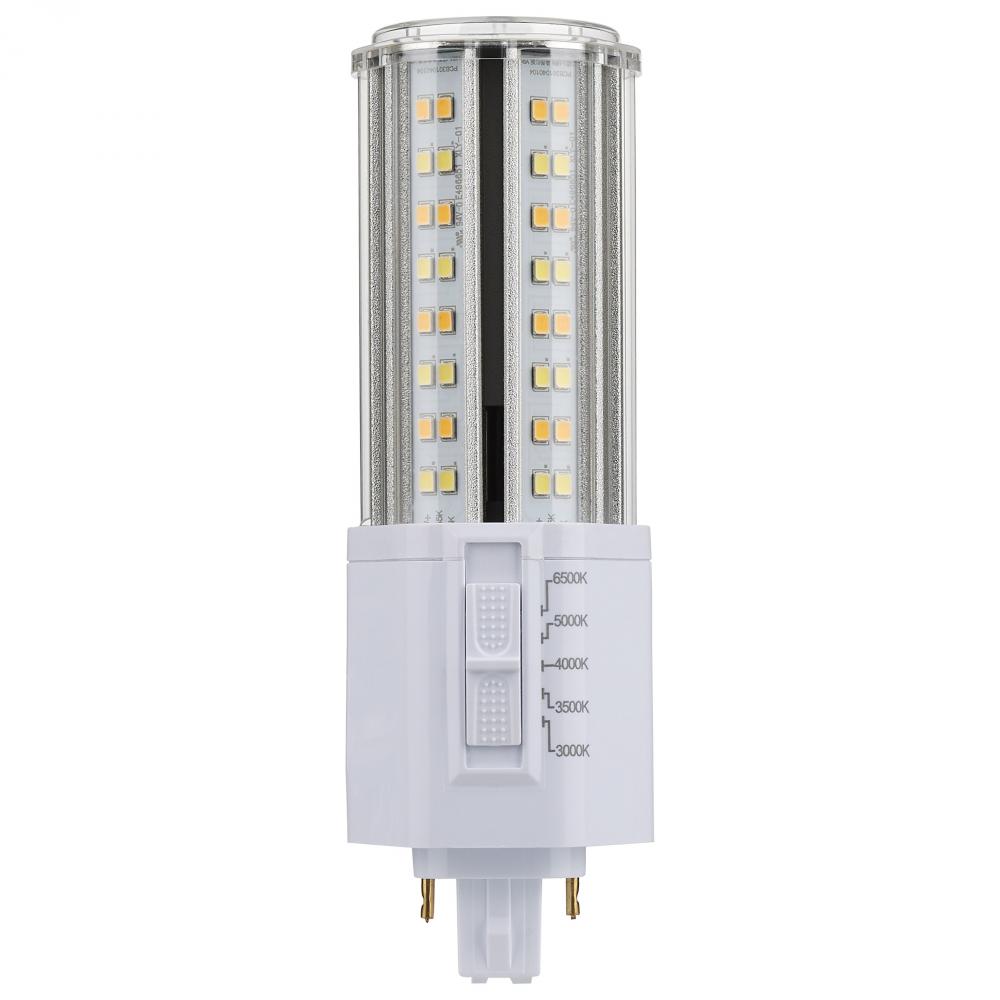

18 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 (X6PRE)
$27.00
Call For Price
Enlarge Image
Add to Cart
Description:
18 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 Volt
Availability:
  • Manufacturer has 744 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.95"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED CFL Replacements Pin Based
right arrow Volts: 120V/277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
right arrow Bulb Shape: PL
right arrow Diameter: 1.95
right arrow EA Length: 2.56
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 6.12
right arrow Lumens: 2250L-2340L
right arrow Shap Carton Width: 2.36
right arrow Ship Carton Height: 7.44
right arrow Ship Weight: 0.52
right arrow Warranty: 5 Year Limited - 10 hr per day
right arrow Weight: 0.42
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
right arrow Beam Spread: 300
right arrow Bulb ANSI Base: G24d
right arrow Bulb Base: G24d (2-Pin)
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.026
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm White to Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 125.00/127.50/130.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Both
right arrow FCC Compliant: Yes
right arrow Feature 1: 5 CCT Selectable
right arrow Feature 10: G24d Base
right arrow Feature 2: High Lumen Output
right arrow Feature 3: Rated for Extreme Temperatures
right arrow Feature 4: 300 Degree Beam Angle
right arrow Feature 5: 32W Fluorescent Replacement
right arrow Feature 6: Damp location rated
right arrow Feature 7: Type B Ballast Bypass
right arrow Feature 8: Rated for Enclosed Fixtures
right arrow Feature 9: 120/277V Dual Voltage
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 100W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Suggested wattage equivalency = 32W CFL
right arrow IOT Enabled: No
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Location Rating: Damp
right arrow Long Description: Designed to deliver impressive brightness, SATCO NUVO's S21414, 18-watt LED High Lumen PL Lamps outshine traditional 32-watt fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their a
right arrow Material: Aluminum / Polycarbonate (PC)
right arrow Minimum Compartment Size: Length: 6 in. Width: 6 in. Height: 8.5 in.
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -25C (-13F) to +50C (+122F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 15
right arrow RoHS Compliant: Yes
right arrow Romance Copy: Designed to deliver impressive brightness, LED High Lumen PL Lamps outshine traditional fluorescents. THE G24d base allows for seamless replacement of outdated fixtures, providing a hassle-free upgrade. With their advanced ballast bypass Type B technology,
right arrow SDS class: LED_Lamp
right arrow Short Description: 18W/PL/LED/HL/5CCT/G24
right arrow Style: Transitional
right arrow Surge Protection: Built-in-surge protection - 0.5KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 18W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: Compact Fluorescent (CFL) Bulbs
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 3001-3500
right arrow Standard Wattage: 18w
