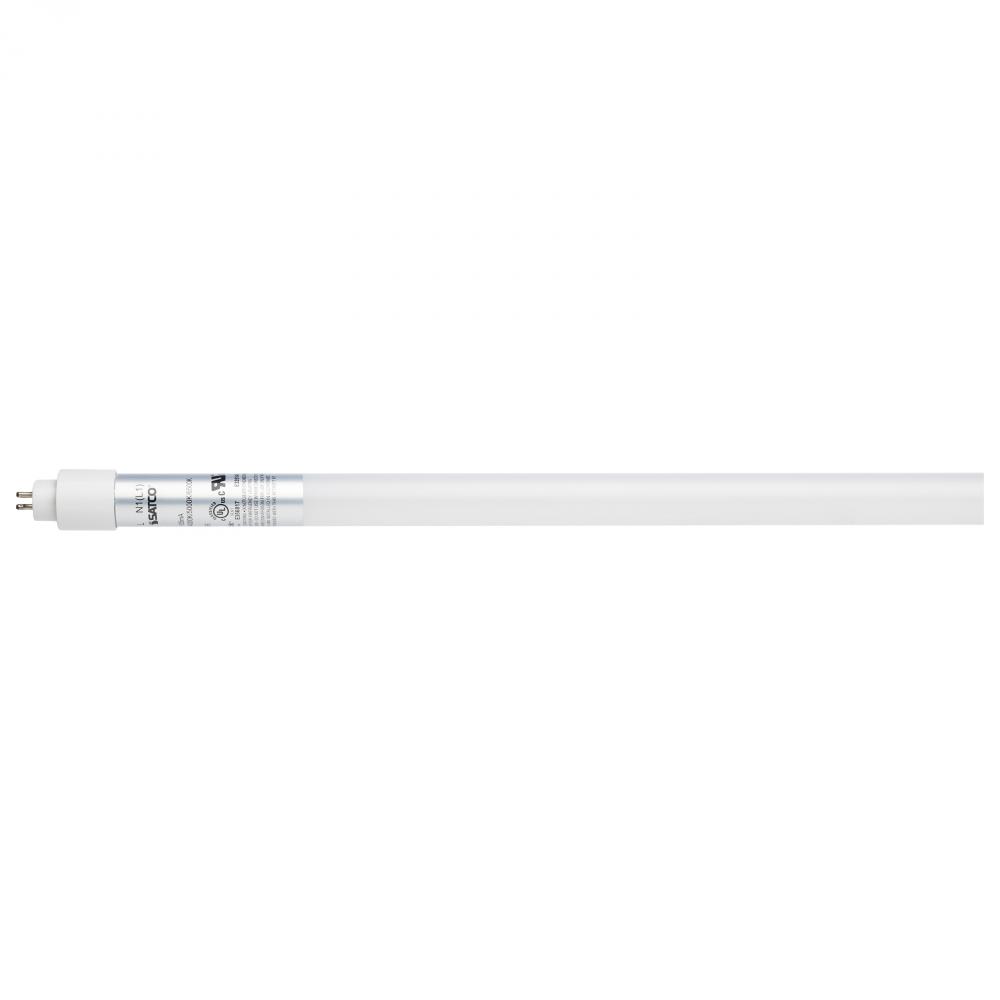

16 Watt 3 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended (X6PR9)
$18.00
Call For Price
Enlarge Image
Add to Cart
Description:
16 Watt 3 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended Wiring; White Finish; 120-277 Volt
Availability:
  • Manufacturer has 2744 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 0.88"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T5
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
right arrow Bulb Shape: T5
right arrow Diameter: 0.88
right arrow EA Length: 33.46
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 33.98
right arrow Lumens: 2000L/2075L/2100L/2150L/2050L
right arrow Shap Carton Width: 0.87
right arrow Ship Carton Height: 0.87
right arrow Ship Weight: 0.43
right arrow Warranty: 5 Year Limited - T5 LED Bulbs - Ballast Bypass
right arrow Weight: 0.28
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 160
right arrow Bulb ANSI Base: G5
right arrow Bulb Base: Miniature Bi Pin
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0147
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Soft White to Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 125.00/129.69/134.38 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: 3-foot length
right arrow Feature 2: 39-Watt Fluorescent equivalent
right arrow Feature 3: 2150 max lumens
right arrow Feature 4: Range voltage: 120V-277V
right arrow Feature 5: Wiring: Single Ended, Double Ended
right arrow Feature 6: Enclosed Fixture Rated
right arrow Feature 7: Beam angle of 160 degrees
right arrow Feature 8: Functional life of 50,000 hours
right arrow Feature 9: Type B Ballast Bypass
right arrow Flourescent Equivalent: 39W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 100W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: The Satco S11564 LED T5 lamp is a durable and functional lighting solution for a variety of applications. Its sleek, white design and shatterproof PET glass construction make it ideal for use in high-traffic areas and damp locations, such as bathrooms and
right arrow Material: Plastic
right arrow Nominal Length: 36
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfec
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 16T5/LED/36-CCT/BP/HO/SE-DE
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <25%
right arrow Tube Guard Use: No
right arrow Wattage Selectable: No
right arrow Watts: 16W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: Fluorescent Light Bulbs
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 3001-3500
