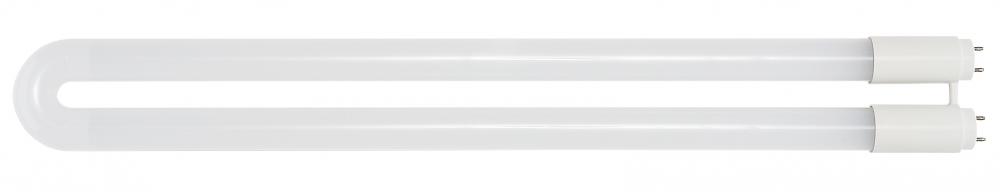

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast (LNMYJ)
$22.00
Call For Price
Enlarge Image
Add to Cart
Description:
13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer has 12 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8 U Bend
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 23.2
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 22.59
right arrow Lumens: 2000L
right arrow Shap Carton Width: 2.8
right arrow Ship Carton Height: 1.2
right arrow Ship Weight: 0.55
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 0.5
right arrow Additional Info: Replaces FB31T8/U1
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Dual
right arrow Ballasting Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
right arrow Beam Spread: 160
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0451
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard; Standard
right arrow DLC ID: PLL0X0VFL6OP; PLY5P1LK7Z5W
right arrow DLC Primary Use: Dual Mode Internal Driver (UL Type A and Type B); Replacement Lamps (Plug and Play) (UL Type A)
right arrow Efficacy: 153.85 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: MOL: 22.59 inches, MOD: 1.00 inch
right arrow Feature 2: Superior 80 CRI light quality, 2000 lumens, 5000K natural light, with a 160 degree beam spread
right arrow Feature 3: Rated for enclosed fixtures
right arrow Feature 4: Damp location rated
right arrow Feature 5: 13 watt LED replaces 31 watt fluorescent
right arrow Feature 6: Frost finished U-bend plastic bulb with plastic housing
right arrow Feature 7: DLC Certified and qualifies for rebates where available
right arrow Feature 8: 5 year limited warranty
right arrow Flourescent Equivalent: 31W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow Lamp Ballast Type A/B/C: Type A/B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Leg Spacing: 1.625
right arrow Lens: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Plastic (PS)
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S18453 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spa
right arrow Material: Plastic
right arrow Nominal Length: 22.5
right arrow NSF Approved: ETL Sanitation listed (conforms to NSF)
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -25C (-13F) to +45C (+113F)
right arrow Pack Type: Box
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 6
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, th
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: Yes
right arrow Short Description: 13T8/U1-G13/LED/850/DUAL
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Total Harmonic Distortion: 20%
right arrow Wattage Selectable: No
right arrow Watts: 13W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 4501-5000
right arrow Standard Wattage: 13w
