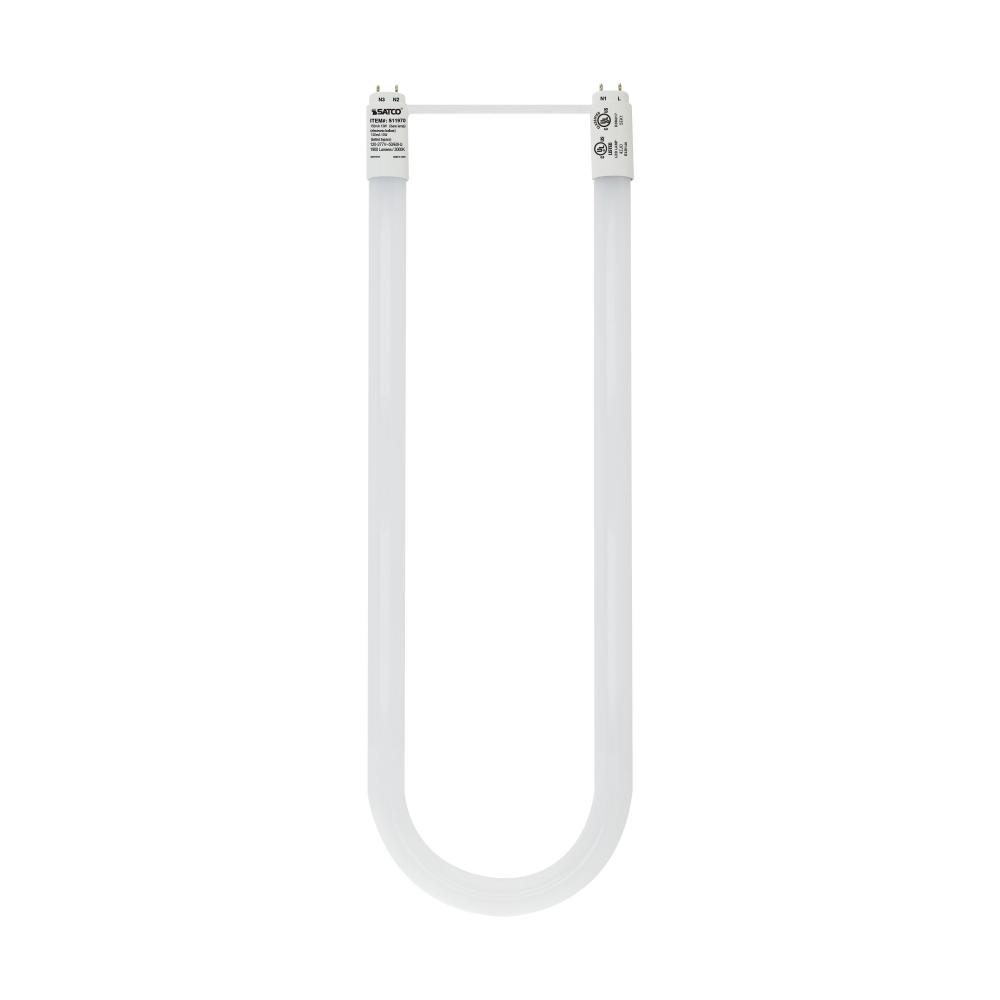

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1900 Lumens; 3000K; Type A/B; Ballast (LNK2P)
$22.00
Call For Price
Enlarge Image
Add to Cart
Description:
13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1900 Lumens; 3000K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring
Availability:
  • Manufacturer has 96 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.10"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8 U Bend
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K
right arrow Bulb Shape: T8
right arrow Diameter: 1.1
right arrow EA Length: 1.19
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 22.59
right arrow Lumens: 1900L
right arrow Shap Carton Width: 23.13
right arrow Ship Carton Height: 7.13
right arrow Ship Weight: 0.99
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 0.91
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Dual
right arrow Ballasting Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
right arrow Beam Spread: 160
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Frost
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.1136
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 20 percent
right arrow Dimmable Function: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: PLT0HYEACRK2
right arrow DLC Primary Use: Dual Mode Internal Driver (UL Type A and Type B)
right arrow Efficacy: 146.15 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Up to 60 percent energy savings versus standard T8 systems
right arrow Feature 2: Ballast compatible and ballast bypass in one lamp
right arrow Feature 3: Bypass mode works in single or double ended wiring
right arrow Feature 4: Shatterproof plastic
right arrow Feature 5: Five year warranty
right arrow Feature 6: DLC certified
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Installation Notes: Not for use in vapor tight fixtures. Direct replacement for 32W/23T8/U6 lamps only
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type A/B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Leg Spacing: 6
right arrow Lens Finish: Frost
right arrow Lens Material: Plastic (PS)
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S11970 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium
right arrow Material: Plastic
right arrow Nominal Length: 22.5
right arrow NSF Approved: ETL Sanitation listed (conforms to NSF)
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -25C (-13F) to +45C (+113F)
right arrow Pack Type: Color Box
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium bi pin
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: Yes
right arrow Short Description: 13T8U6/LED/22.5-830/DUAL
right arrow Style: Utility
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 20%
right arrow Tube Guard Use: Yes
right arrow Wattage Selectable: No
right arrow Watts: 13W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 2501-3000
right arrow Standard Wattage: 13w
