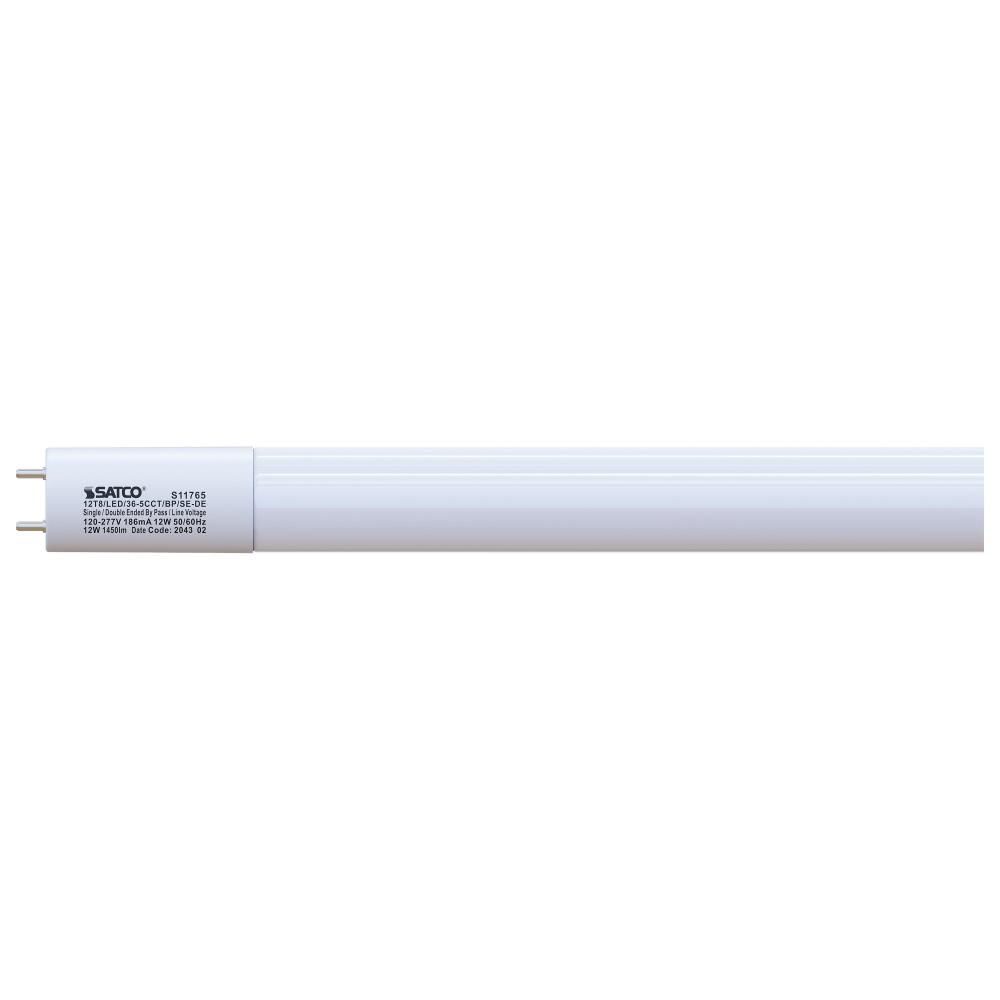

12 Watt; 3 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt (X3UYQ)
$11.00
Call For Price
Enlarge Image
Add to Cart
Description:
12 Watt; 3 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt
Availability:
  • Manufacturer has 775 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 35.83
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 35.17
right arrow Lumens: 1350L/1350L/1450L/1450L/1450L
right arrow Shap Carton Width: 0.9399999999999999
right arrow Ship Carton Height: 0.9399999999999999
right arrow Ship Weight: 0.44
right arrow Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
right arrow Weight: 0.35
right arrow Additional Info: Non CCT Selectable options are S39926-S39929
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0183
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm White to Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-3REMZ6
right arrow DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
right arrow Efficacy: 112.50/116.67/120.83 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: MOL: 35.17 inches, MOD: 1.00 inch
right arrow Feature 2: Medium Bi Pin base
right arrow Feature 3: CCT Selectable
right arrow Feature 4: Rated for 50,000 hours
right arrow Feature 5: Damp Location Rated
right arrow Feature 6: Single or double-ended wiring
right arrow Feature 7: 5-Year Warranty
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Material: Glass / Plastic
right arrow Nominal Length: 36
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 5
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K
right arrow SDS class: LED_Lamp
right arrow Short Description: 12T8/LED/36-5CCT/BP/SE-DE
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <25%
right arrow Wattage Selectable: No
right arrow Watts: 12W
right arrow Standard Category: Lamps
right arrow Standard Subcategory: LED Lamps
right arrow Standard Lumens: 1101-1600
right arrow Standard Kelvin: 3001-3500
right arrow Standard Wattage: 12w
