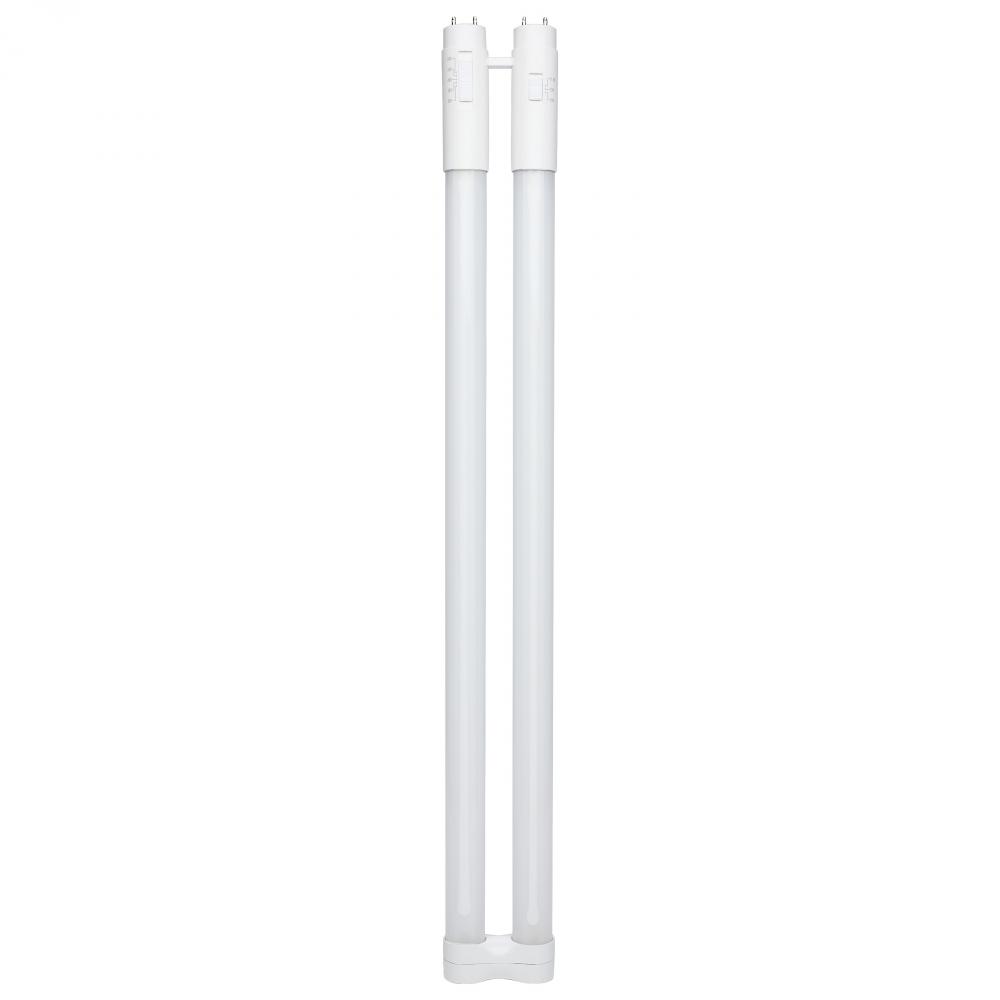

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 1-Inch; Frost (X6VM5)
$22.00
Call For Price
Enlarge Image
Add to Cart
Description:
11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 1-Inch; Frost Finish; 120-277 Range Voltage
Availability:
  • Manufacturer has 12266 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 0.96"
Additional Details:
right arrow Finish Family: Frost
right arrow Category: LED
right arrow Sub-Category: LED T8 U Bend
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
right arrow Bulb Shape: T8
right arrow Diameter: 0.96
right arrow EA Length: 23.03
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 22.43
right arrow Lumens: 1800L/2000L/2200L
right arrow Shap Carton Width: 1.22
right arrow Ship Carton Height: 1.22
right arrow Ship Weight: 0.64
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 0.5
right arrow Ballast Bypass Direct: Dual
right arrow Ballasting Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
right arrow Beam Spread: 210
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: Frost
right arrow Carton Cubic Feet: 0.0198
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Soft White to Daylight
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-H5FJF9
right arrow DLC Primary Use: Dual Mode Internal Driver (UL Type A and Type B)
right arrow Efficacy: 156.52/153.85/146.67 LPW
right arrow Enclosed Fixture Use: No
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT and Wattage Selectable
right arrow Feature 2: Type A/B Ballast Bypass
right arrow Feature 3: NSF Approved
right arrow Feature 4: Single and Double Ended Wiring
right arrow Feature 5: Full Glass Housing
right arrow Feature 6: 1 Inch Leg Spacing
right arrow Feature 7: 50,000 Hour Functional Life
right arrow Feature 8: 5 Year Warranty
right arrow Flourescent Equivalent: 32W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type A/B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Leg Spacing: 1.63
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S18414 LED filament U-Bend lamp with 1-inch leg spacing, delivers versatile and efficient lighting solutions for a range of applications. This lamp consumes significantly less energy than its fluorescent counterpart and features a much lon
right arrow Material: Glass
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 12
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO offers LED filament U-Bend lamps with both 1-inch and 6-inch leg spacing, delivering versatile and efficient lighting solutions for a range of applications. These lamps consume significantly less energy than their fluorescent counterparts and fe
right arrow SDS class: LED_Lamp
right arrow Short Description: 15T8/U1/LED/5CCT/DUAL
right arrow Style: Utility
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: <20%
right arrow Wattage Selectable: Yes
right arrow Watts: 11.5W/13W/15W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
